• CNC Gantry Machining Center GMC2013

    The CNC gantry machining center has high rigidity and reliable structural design, so it not only has the ability of strong cutting, but also can meet the processing of precision parts. The product is suitable for metallurgy, railways, heavy machinery, ships, power generation, automobiles, aerospace, printing, molds and other industries. It can work normally and continuously under the environmental conditions specified in the technical documents with stable precision. It is mainly used for the processing of heavy and super heavy parts, especially for CNC processing of various planes, curved surfaces, spatial curved surfaces and holes of ferrous and non-ferrous metals with large weight and long workpiece length. It is widely used in the rough and fine processing of various complex parts such as plates, boxes and racks in the machinery manufacturing industry. The machine tool can complete curved surface processing and rigid tapping, and the addition of an accessory milling head can complete the processing requirements of pentahedrons. And according to the customer’s processing technology requirements, an accessory milling head can be added, and according to the processing technology of the workpiece, a pentahedron can be processed in one clamping.

    Read moreDone

  • CNC gantry milling machine GMC1813

    CNC gantry machining center has the advantages of high efficiency, high precision and high stability, so it is widely used in machinery manufacturing, automobile, electronics, medical equipment and other fields.

    Read moreDone

  • CNC gantry milling machine GMC1613

    The CNC gantry machining center has high rigidity and reliable structural design. It not only has the corresponding strong cutting ability, but also can meet the processing of precision parts. The product is suitable for metallurgy, railways, heavy machinery, ships, power generation, automobiles, aerospace, printing, molds and other industries. It can work normally and continuously under the environmental conditions specified in the technical documents with stable precision. It is mainly used for the processing of heavy and super heavy parts, especially for CNC processing of various planes, curved surfaces, space curved surfaces and holes of ferrous and non-ferrous metals with large weight and long workpiece length. It is widely used to complete the rough and fine processing of various complex parts such as plates, boxes and racks in the machinery manufacturing industry. The machine tool can complete curved surface processing and rigid tapping. The addition of an accessory milling head can complete the processing requirements of five faces. And according to the customer’s processing technology requirements, the accessory milling head can be added according to the processing technology of the workpiece, and a five-faced body can be processed in one clamping.

    Read moreDone

  • CNC Horizontal Machining Center HMC 630

    product description:
    HMC series precision horizontal machining center adopts positive T-shaped structure, integral base, large-span double-wall column, three-axis heavy-duty roller guide rail, and the structure of the whole machine is high. Forced cooling directly connected to the spindle, the machine tool has stable precision. Equipped with a double-pallet automatic workpiece exchange system, it is suitable for batch multi-face machining of parts such as boxes, discs, shells, machine bases, etc., and is also suitable for finishing of various molds.

    Read moreDone

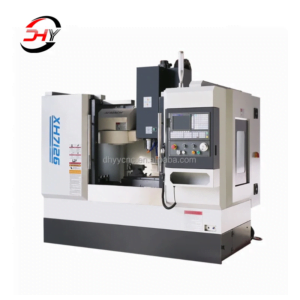

  • CNC Milling Machine XH7126

    1. The main basic parts such as the base, slide, workbench, column, and lifting box are all made of HT300 cast iron; the base is a box structure, and the lifting box is a mobile board house.

    The rationally structured rigid rib structure ensures the corresponding rigidity and bending and shock absorption performance of the basic parts; the grid-like rib structure inside the column effectively ensures the rigidity and precision of the strong rigidity of the Z axis; the basic parts are molded with resin sand and are treated with aging, which provides a guarantee for the stability of the machine tool for long-term use.

    2. The X, Y, and Z cylinders are all made of plastic-coated aluminum alloy, which has the characteristics of high rigidity, low coefficient, low noise, and minimum rise and fall. With automatic forced lubrication, the machine tool accuracy and bearings are improved;

    3. The Z direction adopts counterweight balance to ensure the smooth and stable movement of the headstock; the Z-direction drive motor is equipped with a power-off brake device;

    4. The X, Y, and Z-direction feed adopts a high-strength internal circulation double-bolt pre-tightened large-lead ball screw with high feed; the drive motor is directly connected to the screw through an elastic coupling, and the feed servo motor directly transmits power to the ball screw without gap, ensuring the positioning accuracy and synchronization of the machine tool;

    5. The high-speed, load-bearing, and high-rigidity spindle unit is adopted, and the installation and bearing load-bearing capacity are strong, with a maximum of about 8000rpm;

    6. The spindle and screw spindle protection devices in the three directions of X, Y, and Z are protected to ensure the cleanliness of the screw and spindle, and the transmission and movement accuracy of the machine tool and Service life;

    7. The machine tool’s external protection adopts a full protection structure design, which is easy to operate, safe, reliable and beautiful;

    8. A reliable centralized automatic lubrication device is used to perform timed, quantitative and automatic intermittent lubrication of each lubrication point of the machine tool, and the lubrication time can be adjusted according to the working conditions;

    9. The machining center adopts 12 bamboo hats (standard configuration) produced by a professional manufacturer in Taiwan, which are accurate in tool change, short in time and high in efficiency. After millions of operation tests, it meets the reliability requirements; it has a structural structure that can reduce the impact of movement time and ensure the continuous existence of the tool magazine; pneumatic drive, easy to use, and the shortest tool change path;

    10. A simple oil-water cooling separation device can separate most of the collected lubricating oil from the liquid to prevent the coolant from deteriorating quickly, which is beneficial to environmental protection;

    11. The machine tool adopts the principle of ergonomics, and the operating box is independently designed, which can rotate by itself and is easy to operate.

    Read moreDone

  • Horizontal Machining Center HMC500

    Product description:
    HMC series precision horizontal machining center adopts positive T-shaped structure, integral base, large span double wall column, three-axis heavy-duty roller guide rail, and high structural strength of the whole machine. The spindle is directly connected with forced cooling, and the machine tool accuracy is stable. Equipped with a double-pallet automatic workpiece exchange system, it is suitable for batch multi-faceted processing of parts such as boxes, discs, shells, machine bases, etc., and is also suitable for fine processing of various molds.

    Read moreDone

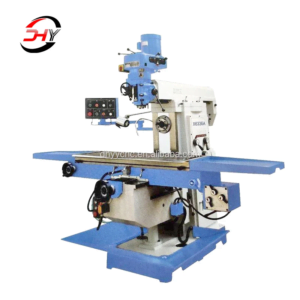

  • Milling Machine X6332

    Optional accessories:
    1. Power feed 2. 3-axis digital 3. Mechanical vise 4. Milling machine chuck 5. Variable milling head 6. Pneumatic pull rod 7. Dividing head

    Read moreDone

  • Milling Machine X6336

    Optional Accessories:
    1. Power feed 2. 3-axis Digital 3.Machine Vise 4. Milling Chuck 5.Variable milling head 6. Air drawbar 7. Dividing Head
    Read moreDone

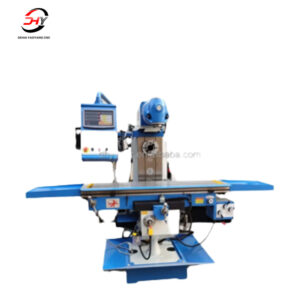

  • Milling machine X6436

    The milling head can rotate clockwise and counterclockwise to adjust 45 degrees The spindle bearing adopts conical sub bearings with strong bearing capacity, and adopts energy consumption braking with high braking torque, fast stopping, and stable braking.

    Read moreDone
