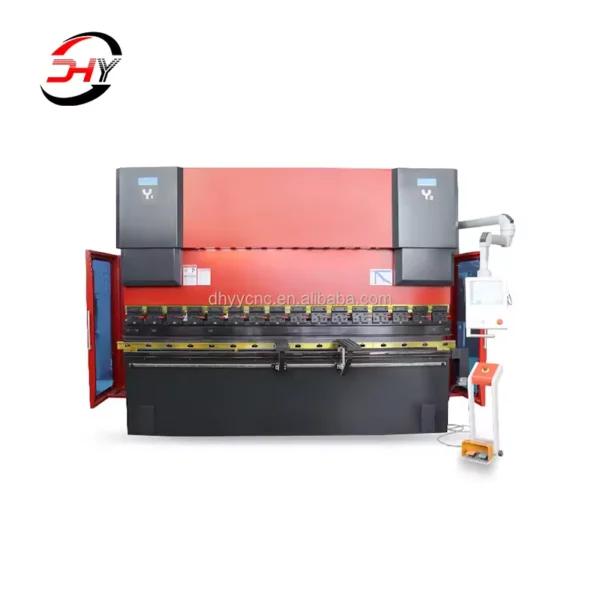

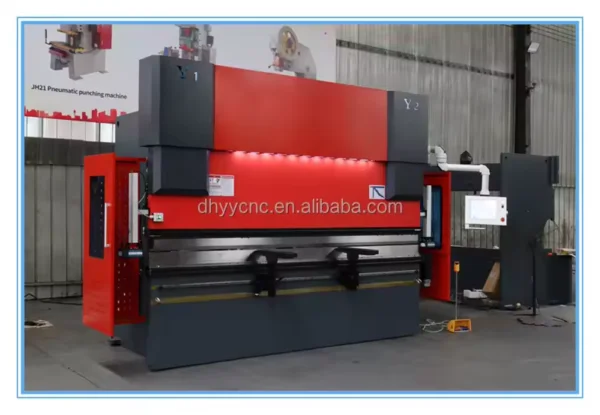

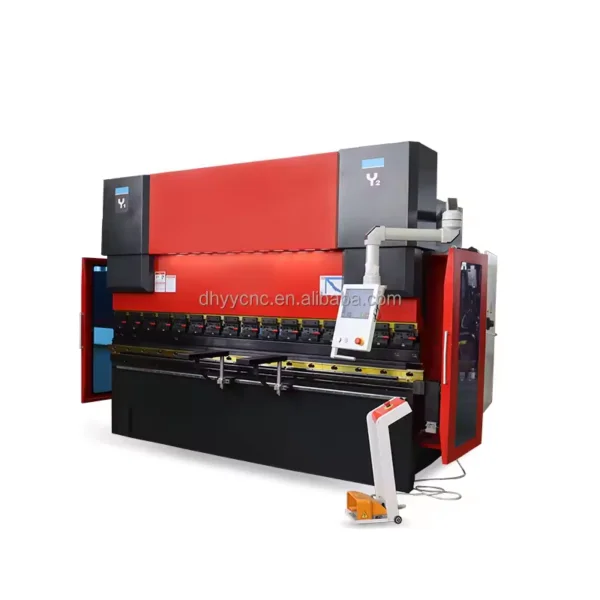

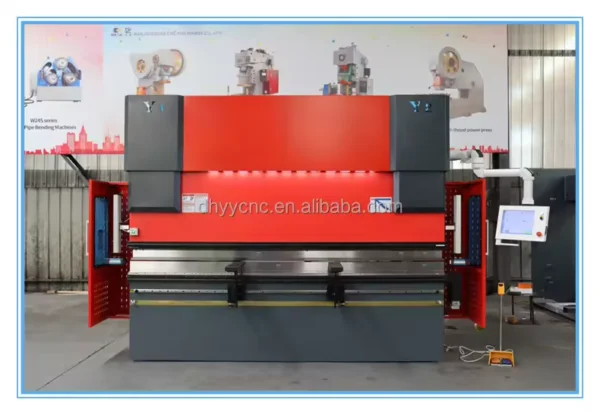

CNC bending machine WC67K

Special numeric-control system is fitted with mainframe of the bending Multi-work-step programming function is able to achieve an automatic coperation and contnuous positioning of multi-step procedures, as well as anautomatic precision adjustment for positions of rear stopper and gliding block.

Description

The machine is provided with bend counting function,for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters. Imported ball bearing lead screw and linear guide rail are used for rearstopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.

Type	Nominal force	Worktable length	Poles distance	Throat depth	Stroke	Max open	Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	LxWxH (mm)
40T/2200	400	2200	1680	200	100	320	5.5	2300×1100×1900
40T/2500	400	2500	1880	200	100	320	5.5	2600×1100×1900
50T/2200	500	2200	1680	200	100	320	5.5	2300×1150×1940
50T/2500	500	2500	1880	200	100	320	5.5	2600×1150×1940
63T/2500	630	2500	1880	250	120	340	5.5	2600×1600×2300
63T/3200	630	3200	2550	250	120	340	5.5	3300×1600×2300
80T/3200	800	3200	2550	320	200	360	7.5	3300×1700×2300
80T/4000	800	4000	3150	320	200	360	7.5	4100×1700×2300
100T/3200	1000	3200	2550	320	200	380	7.5	3300×1800×2400
100T/4000	1000	4000	3150	320	200	380	7.5	4100×1800×2400
160T/3200	1600	3200	2550	320	200	450	11	3300×1600×2600
160T/4000	1600	4000	3150	320	200	450	11	4100×2000×2600
160T/6000	1600	6000	5000	320	250	450	11	6100×2000×3200
200T/3200	2000	3200	2550	320	250	500	11	3300×2100×2800
200T/4000	2000	4000	3100	320	250	500	11	4100×2100×2900
200T/5000	2000	5000	4000	320	250	500	11	5100×2100×3000
250T/4000	2500	4000	3100	350	250	570	18.5	4100×2200×3500
250T/5000	2500	5000	4000	350	250	570	18.5	5100×2200×3500
250T/6000	2500	6000	4800	350	250	570	18.5	6100×2200×3500
300T/5000	3000	5000	4000	400	250	570	22	5100×2600×4000
300T/6000	3000	6000	5000	400	250	570	22	6100×2600×4200
300T/7000	3000	7000	5620	400	300	570	22	7100×2600×4400
320T/7000	3200	7000	5620	400	320	570	22	7100×2600×4400
350T/6000	3500	6000	5100	450	320	570	30	6100×2600×4200
350T/7000	3500	7000	5620	450	320	570	30	7100×2500×4500
400T/4000	4000	4000	3100	350	320	620	30	4100×2700×3800
400T/6000	4000	6000	4820	400	320	620	30	6100×2800×4200
400T/6500	4000	6500	5100	400	320	620	30	6600×2800×4300
500T/5000	5000	5000	4100	400	320	620	37	5100×3000×4400
500T/6000	5000	6000	4820	400	320	620	37	6100×3000×4700
500T/7000	5000	7000	5620	400	320	620	37	7100×3000×4900
600T/6000	6000	6000	4820	400	320	620	45	6100×2965×4900
600T/7000	6000	7000	5620	400	320	620	45	7100×2965×4700
