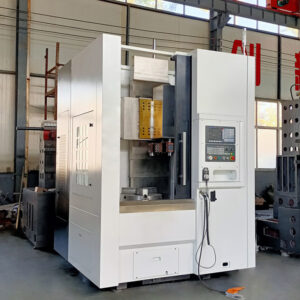

Cnc Vertical Lathe Ck5225
Tool rest adopts the T-type ram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.
Description
Cnc Vertical Lathe Ck5225
Vertical Chinese metal lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation.
| SPECIFICATIONS | Units | CK5225 | CK5240 | CK5250 | CK5263 |
|---|---|---|---|---|---|
| Table diameter | mm | 2250 | 3200 | 4500 | 5700 |
| Max.turning diameter | mm | 2500 | 4000 | 5000 | 6300 |
| Max.height of workpiece | mm | 1600 | 1600 | 2000 | 3150 |
| Max.weight of workpiece | T | 10 | 16 | 32 | 50 |
| Table speed steps | 4 | 4 | 4 | 4 | |
| Table speed range | rpm | 2-63 | 2-63 | 0.5-40 | 0.5-40 |
| Max.torque of table | N·m | 63 | 63 | 70 | 100 |
| Max.cutting force of right tool post | N | 35000 | 35000 | 35000 | 35000 |
| Horizontal travel of right tool post | mm | -1450 | -2200 | -2820 | -3500 |
| Vertical travel of right tool post | mm | 1000 | 1000 | 1250 | 1600 |
| Right vertical tool post feed range | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 | |
| Max.cutting force of left tool post | N | 30000 | 30000 | 30000 | 30000 |
| Horizontal travel of left tool post | mm | -1450 | -2200 | -2820 | -3500 |
| Vertical travel of left tool post | mm | 1000 | 1000 | 1250 | 1600 |
| Left vertical tool post feed range | 0.2-145 | 0.2-145 | 0.2-145 | 0.2-145 | |
| Swivel angle of vertical tool post | mm | ±30 | ±30 | ±30 | ±30 |
| Ram section size | mm | 255*200 | 255*200 | 255*200 | 255*200 |
| Tool size | mm | 40*50 | 40*50 | 40*50 | 40*50 |
| Vertical tool post rapid traverse | mm/min | R:2000 L:1550 | R:2000 L:1550 | R:2000L：1550 | R:2000 L:1550 |
| Max.travel of cross beam | mm | 1250 | 1250 | 1650 | 2650 |
| Cross beam lifting speed | mm/min | 350 | 350 | 350 | 350 |
| Cross beam lifting motor power | kw | 11 | 11 | 11 | 11 |
| Main motor power | kw | 55 | 55 | 70 | 70 |
| Overall dimensiont | kg | 35000 | 43000 | 65000 | 90000 |
| Machine weigh | mm | 5180*4700*5300 | 5180*4700*5300 | 5180*4700*5300 | 5180*4700*5300 |
