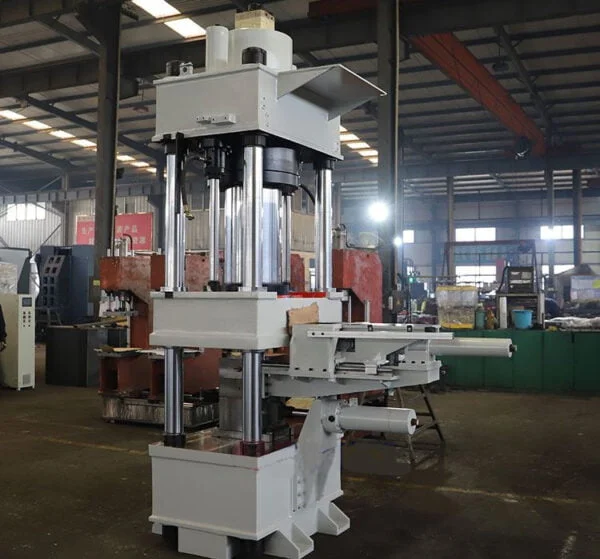

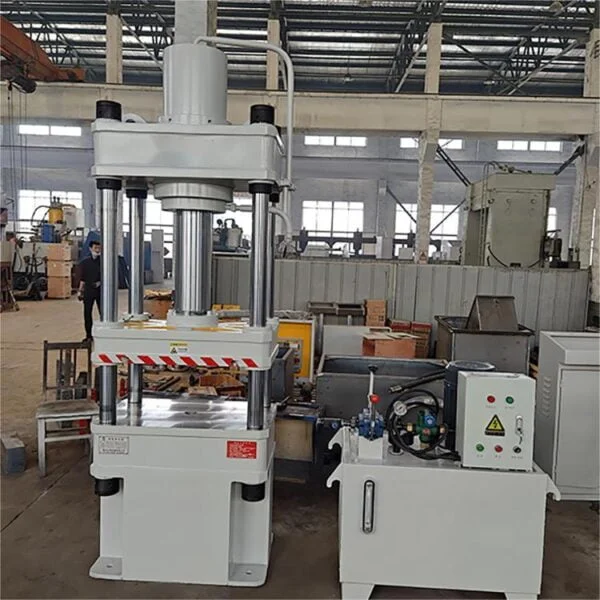

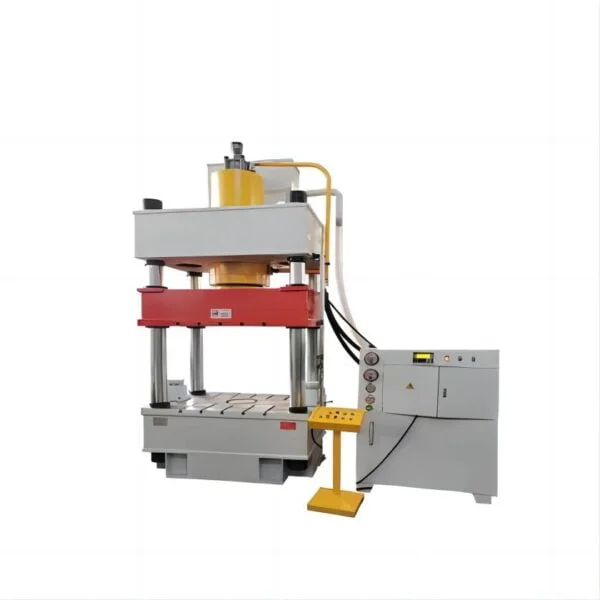

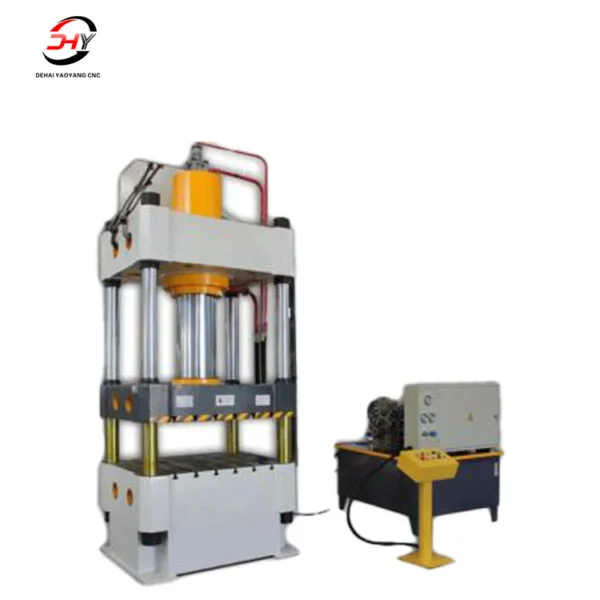

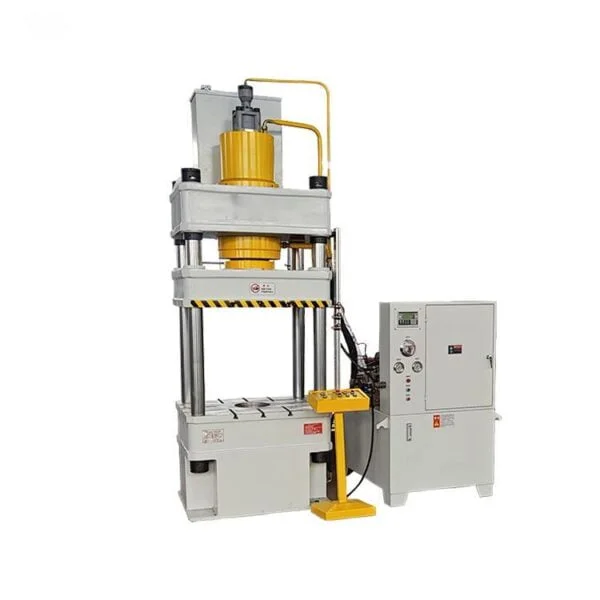

Four-column hydraulic press Y32
1.Four-column hydraulic press Y32 series press is composed of main body and control device, which is composed of frame, main cylinder, elimination cylinder, hydraulic system and transmission mechanism, upper and lower limit switch pipeline, electric control cabinet and so on.
2.The transmission mechanism includes fuel tank, high-pressure pump, low-voltage control system, valve and electrical control system, which is designed according to the working procedure of hydraulic principle.Through the preset, through pump, cylinder, valve, tank, pipeline and other transmission mechanism, can realize continuous operation.
3.This product is suitable for the compression of plastic material, such as powder plastic products, hot/cold metal extrusion, metal sheet stretching, stamping, bending, edge folding, straightening, pressing and mounting etc.
4.Independent drive structure and electrical equipment ensure reliable operation of central control buttons.Adjust, manual operation and semi-automatic operation, provide three modes for your choice.
5.Working pressure, pressing speed, reducing speed and deceleration pressure can be adjusted separately.
6.Through preset, elimination, non – elimination, and drawing, the pressure – depth or distance – dependent death movement can be eliminated.In the case of pressure related movement, the main cylinder of the Y32 type press starts pressure control, delay and automatic return.
Description
1.Four-column hydraulic press Y32 series press is composed of main body and control device, which is composed of frame, main cylinder, elimination cylinder, hydraulic system and transmission mechanism, upper and lower limit switch pipeline, electric control cabinet and so on.
2.The transmission mechanism includes fuel tank, high-pressure pump, low-voltage control system, valve and electrical control system, which is designed according to the working procedure of hydraulic principle.Through the preset, through pump, cylinder, valve, tank, pipeline and other transmission mechanism, can realize continuous operation.
3.This product is suitable for the compression of plastic material, such as powder plastic products, hot/cold metal extrusion, metal sheet stretching, stamping, bending, edge folding, straightening, pressing and mounting etc.
4.Independent drive structure and electrical equipment ensure reliable operation of central control buttons.Adjust, manual operation and semi-automatic operation, provide three modes for your choice.
5.Working pressure, pressing speed, reducing speed and deceleration pressure can be adjusted separately.
6.Through preset, elimination, non – elimination, and drawing, the pressure – depth or distance – dependent death movement can be eliminated.In the case of pressure related movement, the main cylinder of the Y32 type press starts pressure control, delay and automatic return.
| Type | Y32-63 | Y32-100 | Y32-200 | Y32-315 | Y32-400 | Y32-500 | Y32-500A | Y32-630 | |
| Nominal force(kN) | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 | |
| Ejecting force(kN) | 100 | 250 | 400 | 630 | 630 | 1000 | 1000 | 1000 | |
| Backstroke force(kN) | 125 | 320 | 450 | 600 | 600 | 1000 | 1000 | 1000 | |
| Slipper stroke(mm) | 500 | 600 | 700 | 800 | 800 | 900 | 900 | 900 | |
| Ejecting stroke(mm) | 160 | 200 | 250 | 300 | 300 | 355 | 355 | 355 | |
| Max. opening height(mm) | 800 | 90 | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 | |
| stroke speed(mm/s) | Idle stroke down | 22 | 24 | 100 | 100 | 100 | 120 | 120 | 80 |
| Work | 9 | 10 | 120 | 12 | 12 | 12 | 12 | 10 | |
| Return | 50 | 50 | 50 | 60 | 60 | 80 | 70 | 50 | |
| Workbench size(mm) | Left and right | 520 | 720 | 900 | 1120 | 1250 | 1400 | 2200 | 1600 |
| Front and back | 490 | 580 | 900 | 1120 | 1250 | 1400 | 1400 | 1600 | |
| Poles distance(mm) | Left and right | 650 | 800 | 1140 | 1140 | 1500 | 1700 | 2620 | 1950 |
| Front and back | 350 | 430 | 660 | 900 | 1000 | 1120 | 1120 | 1200 | |
| Dimension(mm) | Left and right | 900 | 2000 | 1380 | 1160 | 3600 | 3900 | 4700 | 5200 |
| Front and back | 500 | 1090 | 900 | 1660 | 2300 | 3600 | 3600 | 4600 | |
| Height on ground | 2400 | 3162 | 2725 | 4295 | 4500 | 5220 | 5220 | 6000 | |
| Motor power(kW) | 7.5 | 11 | 15 | 22 | 30 | 44 | 45 | 60 | |
