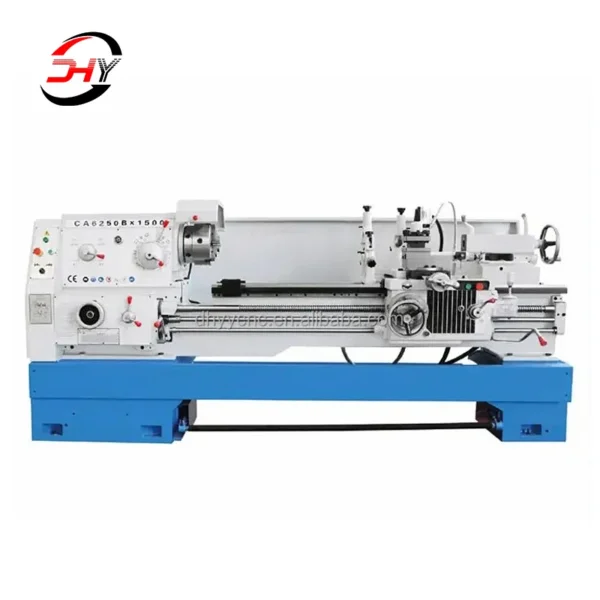

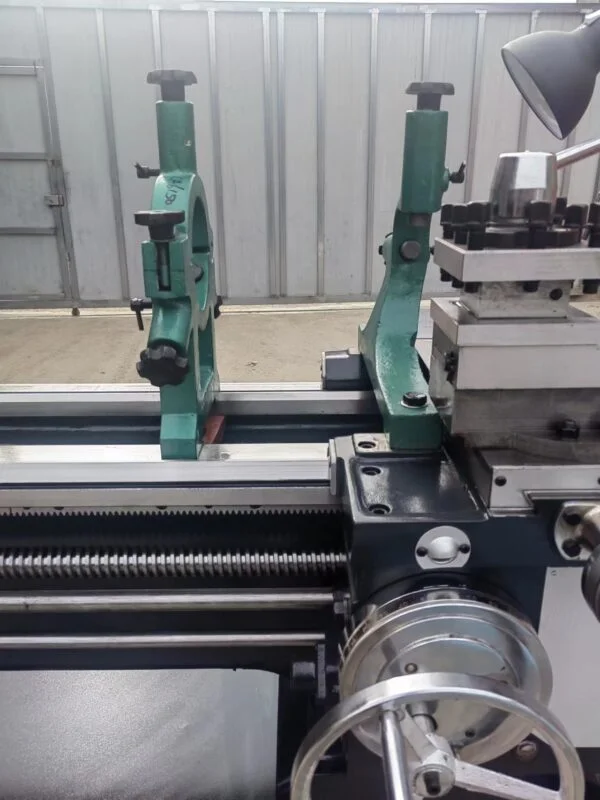

Manual lathe CA series
Manual lathe CA series
1. CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2.The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.

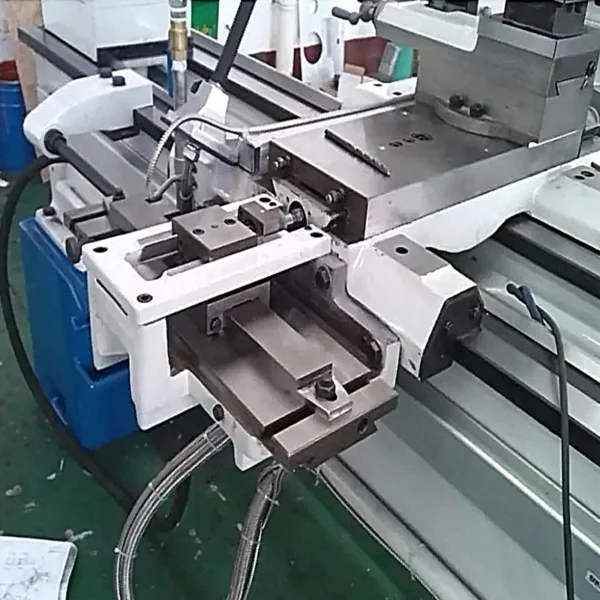

3. Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle
operation,humanization.
4. The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
5. Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Description
Manual lathe CA series
1. CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2.The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
3. Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle
operation,humanization.
4. The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
5. Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
| Type | CA6140 CA6140B | CA6150 CA6150B CA6150C | CA6161 CA6161B CA6161C | CA6166 CA6166B CA6166C | CA6180 CA6180B CA6180C |
|---|---|---|---|---|---|
| CA6240 CA6240B | CA6250 CA6250B CA6250C | CA6261 CA6261B CA6261C | CA6266 CA6266B CA6266C | CA6280 CA6280B CA6280C | |
| Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
| Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
| Max. swing in gap (CA62 series) | 630mm | 720mm | 830mm | 880mm | 1020mm |
| Max. effective length in gap (CA62 Series) | 210mm | ||||
| Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | ||||
| Width of bed | 400mm | ||||
| Section of turning tool | 25×25 mm | ||||
| Main spindle motor | 7.5kw(10HP) | ||||
| Spindle | |||||
| Spindle speed | 16--1400rpm(24step) | ||||
| Spindle bore | 52mm (B:80mm),(C:105mm) | ||||
| Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||
| Feed | |||||
| NO. of feed | (64 kinds)(for each) | ||||
| Range of metric threads | (1-192mm) (44 kinds) | ||||
| Range of inch threads | (2-24tpi) (21kinds) | ||||
| Range of module threads | 0.25-48 (module 39 kinds) | ||||
| Range of diametral pitch threads | 1-96DP (37 kinds) | ||||
| Max. tailstock spindle travel | 150mm | ||||
| Tailstock spindle diameter | 75mm | ||||
| Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | ||||
| Packing dimensions (L*W*H) | |||||
| Overall dimensions for 750mm | 2550×1140×1750mm | 2550×1140×1750mm | 2550×1140×1750mm | 2550×1140×1750mm | 2550×1140×1750mm |
| Overall dimensions for 1000mm | 2700×1140×1750mm | 2700×1140×1750mm | 2700×1140×1750mm | 2700×1140×1750mm | 2700×1140×1750mm |
| Overall dimensions for 1500mm | 3200×1140×1750mm | 3200×1140×1750mm | 3200×1140×1750mm | 3200×1140×1750mm | 3200×1140×1750mm |
| Overall dimensions for 2000mm | 3700×1140×1750mm | 3700×1140×1750mm | 3700×1140×1750mm | 3700×1140×1750mm | 3700×1140×1750mm |
| Overall dimensions for 2200mm | 4030×1140×1750mm | 4030×1140×1750mm | 4030×1140×1750mm | 4030×1140×1750mm | 4030×1140×1750mm |
| Overall dimensions for 3000mm | 4850×1140×1750mm | 4850×1140×1750mm | 4850×1140×1750mm | 4850×1140×1750mm | 4850×1140×1750mm |
| Overall dimensions for 4000mm | 5800×1140×1750mm | 5800×1140×1750mm | 5800×1140×1750mm | 5800×1140×1750mm | 5800×1140×1750mm |
| Weight (kg) | |||||
| Overall dimensions for 750mm | 2100 /1990 | 2170/2060 | 2300/2180 | 2380/2260 | 2520/2400 |
| Overall dimensions for 1000mm | 2190/2070 | 2260/2140 | 2380/2250 | 2570/2450 | 2720/2560 |
| Overall dimensions for 1500mm | 2350/2220 | 2450/2290 | 2577/2437 | 2810/2640 | 2980/2800 |
| Overall dimensions for 2000mm | 2720/2570 | 2800/2640 | 2940/2787 | 3050/2880 | 3260/3087 |
| Overall dimensions for 2200mm | 2800/2600 | 3940/2790 | 3120/2970 | 3390/3180 | 3490/3287 |
| Overall dimensions for 3000mm | 3300/3200 | 3450/3300 | 3600/3450 | 3930/3687 | 4200/3887 |
| Overall dimensions for 4000mm | 3500/3400 | 3750/3600 | 3950/3800 | 4580/4200 | 4850/4500 |
| Features： | |||||
| 1. This series lathe machine is suitable for intemal and extemal turning,tapering,and other rotating faces, metric, module and inch threads,as well as drilling and pull oil slot. | |||||
| 2. The lathe bed is 400mm,with high hardness on guideway,the guideway is through | |||||
| 3. This machine is easy to operate,with rapid device for carriage,design with single hand wheel to operate. high-frequency quenching, wear-resisting. | |||||
| 4. The strength and rigidity of machine is higher than normal lathe machine,high efficiency,suitable for heavy duty machining. | |||||
