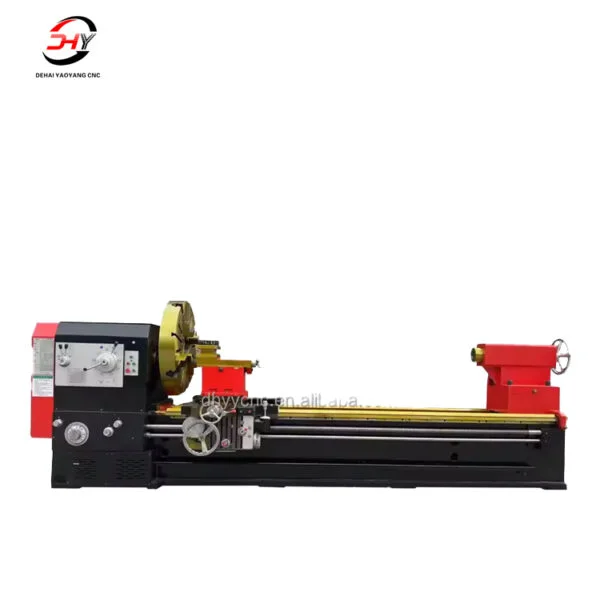

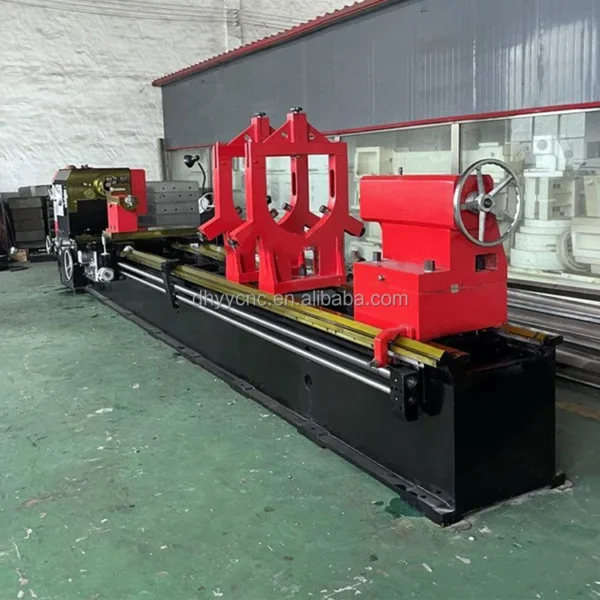

Manual lathe CW61160B
◆The machine tool is inspected in strict accordance with the inspection procedures before leaving the factory,and a strong cutting test is done. The machine tool has good precision stability and processing reliability.
Description
Manual lathe CW61160B

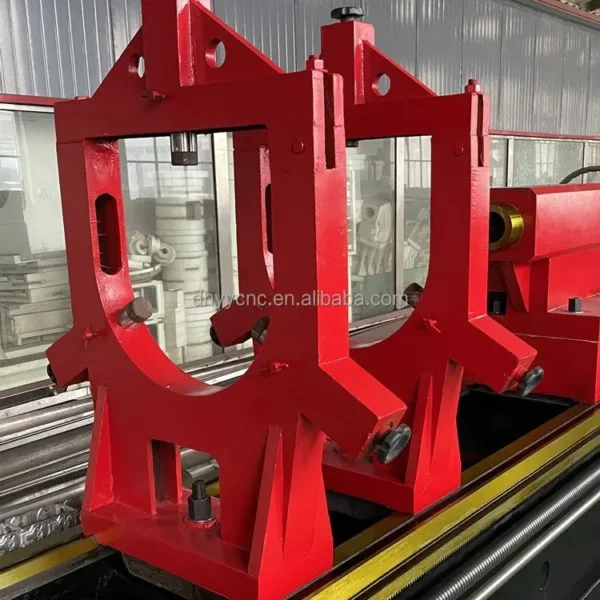

Feature : ◆CW series ordinary horizontal lathes are suitable for turning internal and external cylindrical surfaces, conical
surfaces and other rotating surfaces, turning various metric, inch, modulus and diametral pitch threads, and can perform drilling
and pulling oil grooves, etc. It is very versatile. The powerful horizontal lathe is widely used in batch processing of various
shaft and disk parts. ◆The bed of this series of lathes is wider than ordinary lathes, and the width of the guide rail is 600/755mm,
which has high rigidity. The surface of the guide rail has been quenched by intermediate frequency, which is durable and

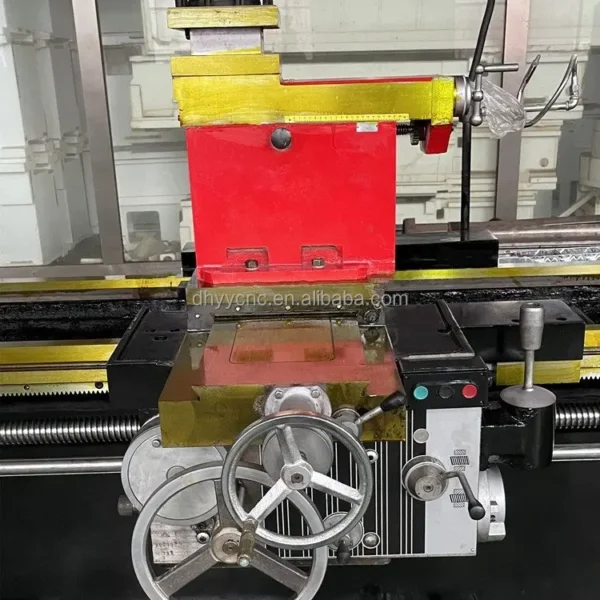

wear-resistant. ◆The operation of the machine tool is flexible and centralized, and the sliding plate is equipped with a
fast-moving mechanism. It adopts single-handle visual operation, which is pleasant. ◆The structural rigidity and transmission
rigidity of the machine tool are higher than those of ordinary lathes, and the power utilization rate is high, which is suitable
for strong cutting.
| Specification | UNIT | CW6280B | CW6180C | CW6280C | CW61100C | CW62100C | CW61160B |
| Swing ove bed | mm | 800 | 800 | 1000 | 1600 | ||
| Swing ove gap | mm | 1000 | — | 1000 | — | 1200 | — |
| Swingovwr cross slide | mm | 520 | 480 | 680 | 1200 | ||
| Distance between centers | mm | 1500/2000/3000 | 1500/2000/3000 | 1500/2000/3000 | 1500/3000 | ||
| Guideway width | mm | 550 | 600 | 600 | 755 | ||
| Max.load capacity | T | 3 | 4 | 4 | 6 | ||
| Spindle bore | mm | 104 | 104 | 104 | 130 | ||
| Spindle bore taper | — | Metric φ120/MT5 | Metric φ120/MT5 | Metric φ120/MT5 | Metric φ140/MT6 | ||
| Spindle nose type | — | C11 | A2-11 | A2-11 | A2-15 | ||
| Spindle spesd steps | — | FWD.18 steps | FWD.18 steps | FWD.18 steps | FWD.21 steps | ||
| Spindle speed range | rpm | 6-800 | 5.4-720 | 5.4-720 | 3.15-315 | ||
| Chuck | mm | φ400 3-jaw manual | φ400 3-jaw manual | φ400 3-jaw manual | 1000 4-jaw manual | ||
| Turret/tool post | — | Manual turret 4 position | Manual turret 4 position | Manual turret 4 position | Manual turet 4position | ||
| Tool shank size | mm | 30×30 | 32×32 | 32×32 | 45×45 | ||
| Y axis travel | mm | 420 | 420 | 420 | 620 | ||
| Z axis travel | mm | 1350/1850/2850 | 1350/1850/2850 | 1350/1850/2850 | 1350/2850 | ||
| X axis feed grade/range | mm/r | 64/0.05-12.15 | 64/0.05-0.912 | 64/0.05-0.912 | 56/0.05-6 | ||
| Z axis feed grade/range | mm/r | 64/0.1-24.3 | 64/0.1-24.3 | 64/0.1-24.3 | 56/0.1-12 | ||
| X axis rapid traverse | mm/min | 2300 | 2300 | 2300 | 1870 | ||
| Z axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 3740 | ||
| Metric thread grade/range | mm | 50/1-240 | 50/1-240 | 50/1-240 | 44/1-120 | ||
| Inch thread grade/range | T.P.I | 26/14-1 | 26/14-1 | 26/14-1 | 31/28-3/8 | ||
| Module thread grade/range | mm | 53/0.5-120 | 53/0 5-120 | 53/0.5-120 | 45/0.5-60 | ||
| DP thread grade/range | D.P. | 24/28-1 | 24/28-1 | 24/28-1 | 30/56-1 | ||
| Teilstock quill diameter | mm | φ100 | φ100 | φ100 | φ140 | ||
| Tailstosk quill taper | mm | MT5 | MT5 | MT5 | MT6 | ||
| Tailstock quill travel | mm | 250 | 250 | 250 | 300 | ||
| Main sindle motor | kW | 11 | 11 | 11 | 22 | ||
| Rapid traverse motor | kW | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | ||
| Width x Height | mm | 1500×1450 | 1550×1650 | 1750×1750 | 2250×2150 | ||
| Length | mm | 3800/4300/5300 | 4000/4500/5500 | 4000/4500/5500 | 4600/6100 | ||
| Net weight | T | 3.9/4.4/5.1 | 5.0/5.4/6. | 5.3/5.7/64 | 13.1/14.0 | ||
| Please note: swing diameter, bed length can customize according to real work demand. | |||||||
